Classic Car Leds

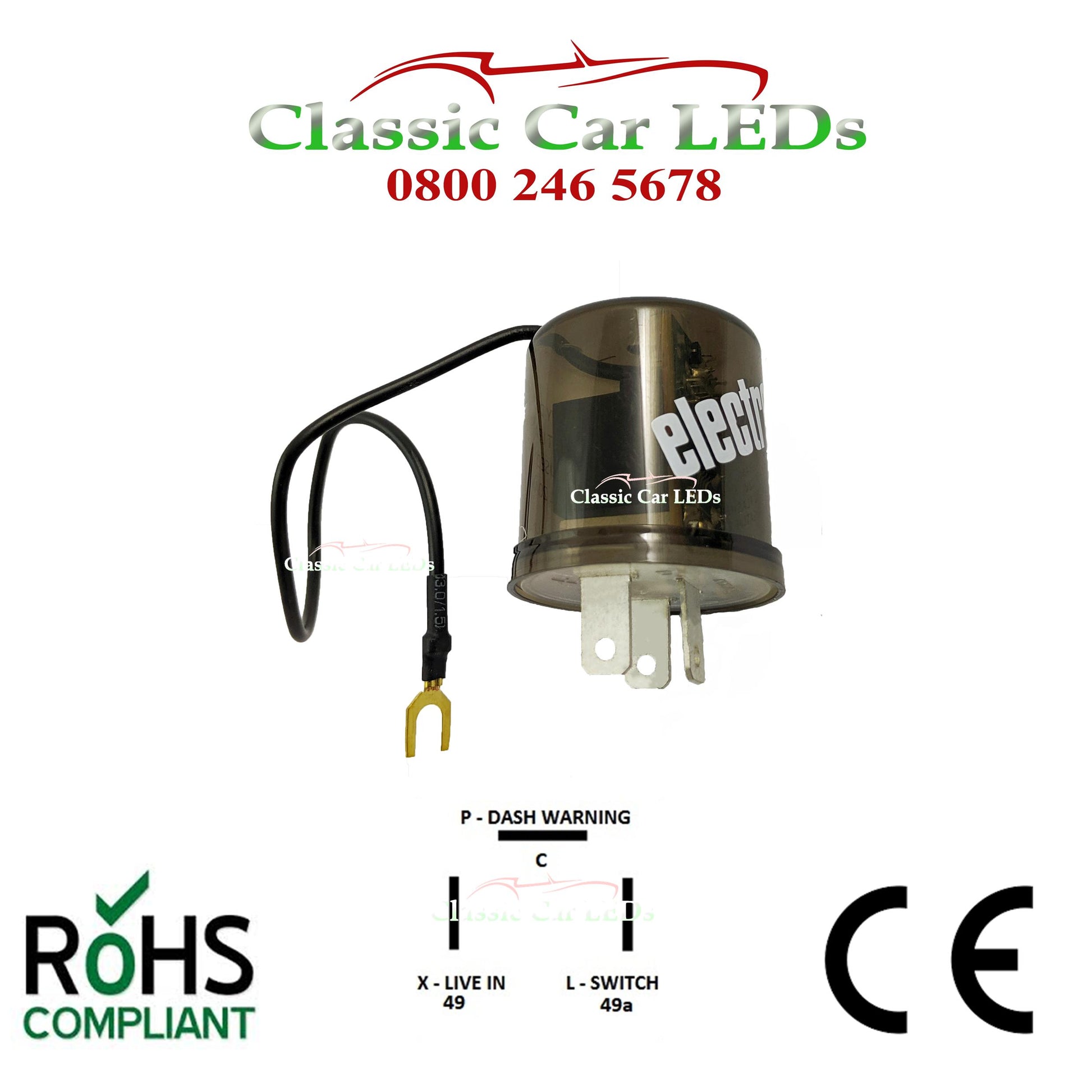

12V ELECTRONIC INDICATOR FLASHER / HAZARD RELAY CLASSIC CAR WITH OE CLICK

12V ELECTRONIC INDICATOR FLASHER / HAZARD RELAY CLASSIC CAR WITH OE CLICK

Regular price £11.10 GBP
Regular price Sale price £11.10 GBP
Sale Sold out
Earth Type

Looking to improve your flasher relay performance or are you considering or have you added LED indicator bulbs?

These electronic relays will keep your flash rate constant and keep it standard even if the load on the circuit changes.  Standard relays will not flash at the correct rate with LED bulbs.

Suitable for many other classic or modern 12v cars or applications with standard filament / incandescent bulbs or LEDs or a mix of filament / incandescent bulbs and LED.

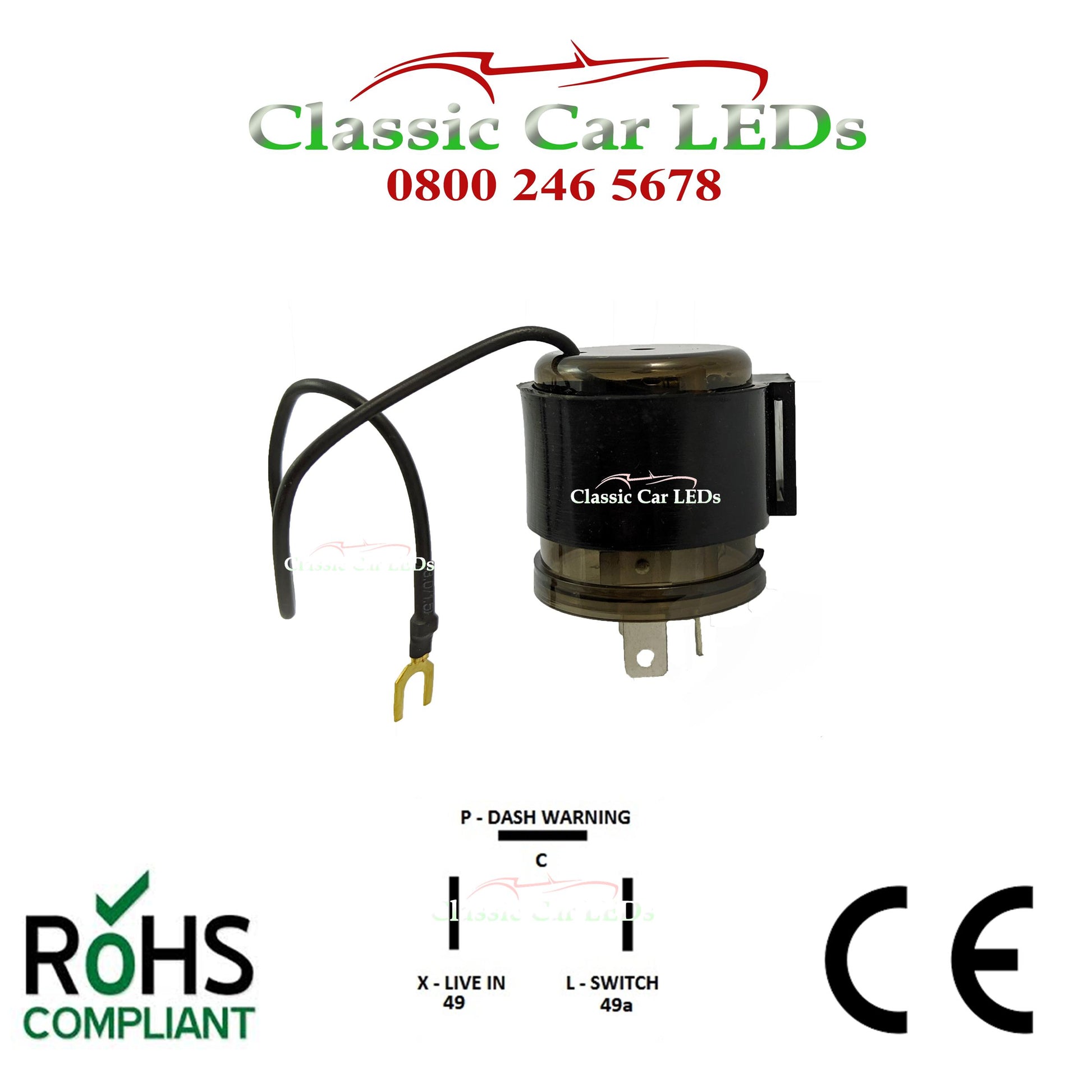

Compatible with most cars and bikes and suitable for indicators or hazards- not many electronic flashers have the OE clicking sound - these do.  Includes rubber mounting bracket.

Suitable replacement for 3 pin flasher relays with 49 (X), 49a (L) and P Connectors.  You will need to also connect the earth connection wire. Also available with Positive Earth, please select the required option from the drop down menu.

Connections:

X = Live In (49)

L = Load (to indicator switch) (49a)

P = Pilot / Dash Indicator Warning (optional - not required for 2 pin configuration)

Black Lead - must be connected to a good earth

Made to our own high specifications for us by a very reputable manufacturer

IF THE RELAY DOES NOT BEHAVE WHEN THE ENGINE IS RUNNING YOU NEED TO ADD SUPPRESSION TO THE LEAD BETWEEN YOUR COIL AND DISTRIBUTOR TO REDUCE THE RF INTERFERENCE.



Technical Characteristics

Nominal Voltage

Un

12V

Operating Voltage

Uop

9V...15V

Pull-in Voltage

Ui

‰¤11V@Tp

Test Voltage

Up

13V±0.2V

Test Temperature

Tp

+20°C±2°C

Switch Current

An

0.02A - 20A

Max. Current

Am

20A

Flashing Frequency

f

90 TIMES/min±10%

Operating Temperature

Top

-40°C...+80°C

Storage Temperature

Tsto

+100°C/2h

Life Time

200h/Wn
CONTINUOUS

Operating Noise

OE Ticking

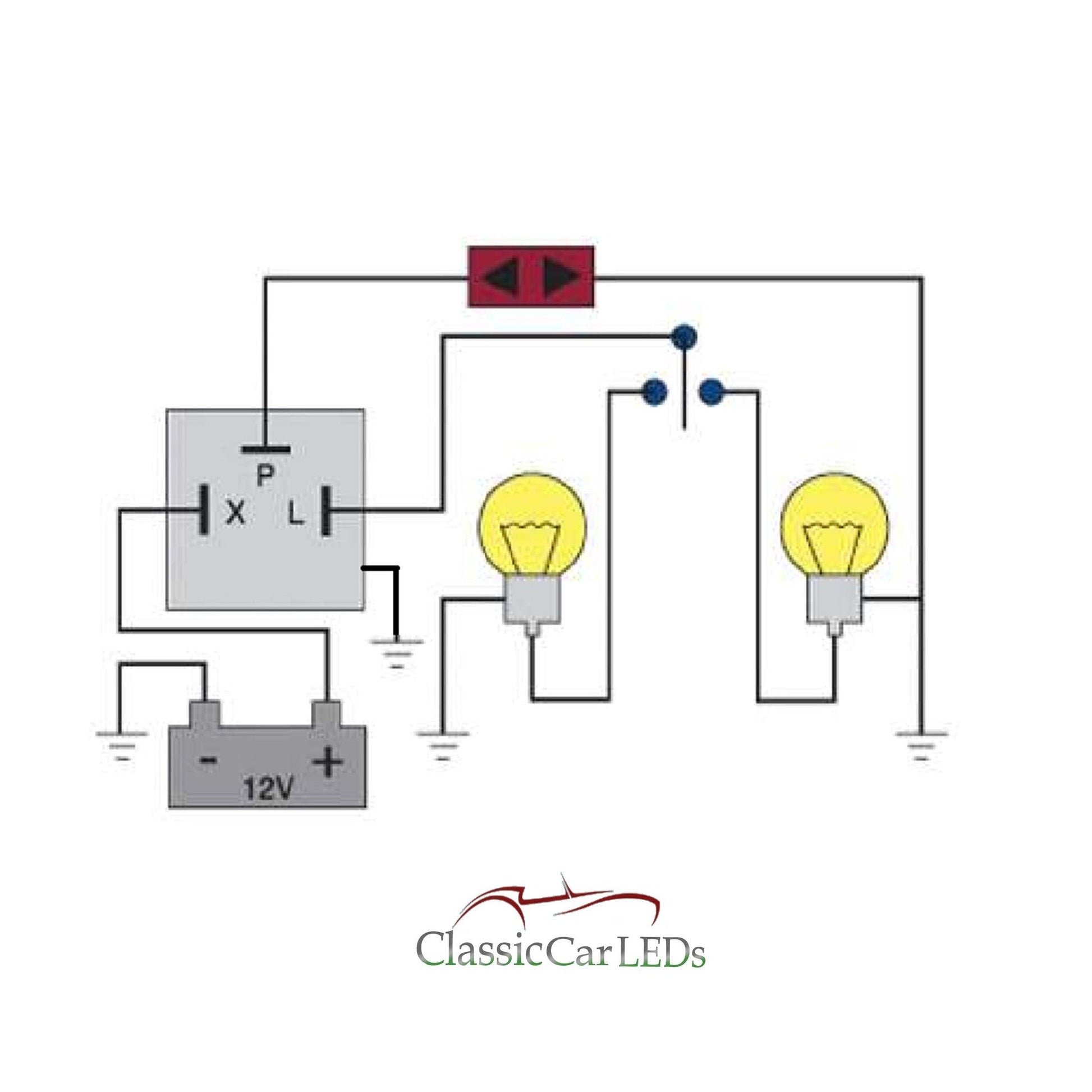

Please refer to wiring diagram in picture 2 for fitting instructions

All prices shown exclude UK VAT which will be added at checkout together with postage where appropriate.

Part Number: 12VFL
