Intelligent Electronic CANbus LED and HID Headlight OBC Warning cancellers H1, H4, H7, H8, H9, H11, HB3, HB4

Intelligent Electronic CANbus LED and HID Headlight OBC Warning cancellers H1, H4, H7, H8, H9, H11, HB3, HB4

Regular price $39.00 USD
Regular price Sale price $39.00 USD
Sale Sold out
Kit Required

Newly developed, these CANbus warning cancellers have a much higher CanBus capability than other decoders and produce significantly less heat than the traditional ballast resistor method. Ballast resitors typically reach 180°. The heat dissipation of these is typically less than 55° so are much safer to use. These can meet the CANbus requirements for HID and LED headlights and will cater for rapid start ballast and common ballast for LED headlights and fog lights.

These decoders simulate a resistor but do it intelligently without adding additional resistance giving you a safe and secure decoding system. They match the power output required by the vehicle automatically and will support load requirements of between 5 and 75 watts.

Meeting CISPR25 requirements, most headlight CanBus issues can be solved with these decoders such as dashboard error lights, lights switching off, lights flickering or computer errors.

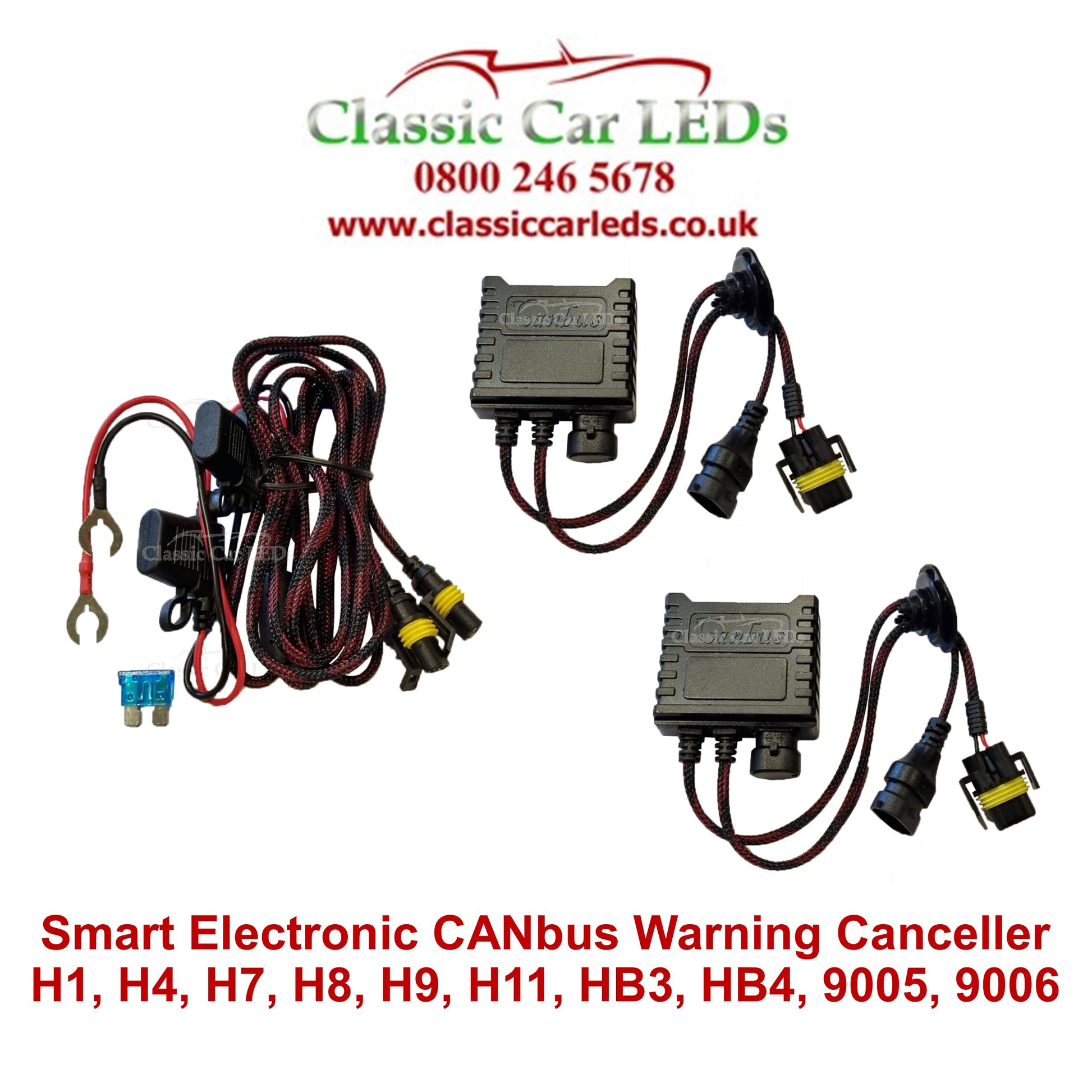

Each kit comprises of a fused connector which connects to your battery which is required to power the units, and two units, one for each headlamp with standard male and female connectors to allow connection to your headlights. We also supply two high tack sticky pads and cable ties which will allow you to secure the controllers safely if required plus a spare fuse.

Available for the following fittings, please choose which you require from the menu above:

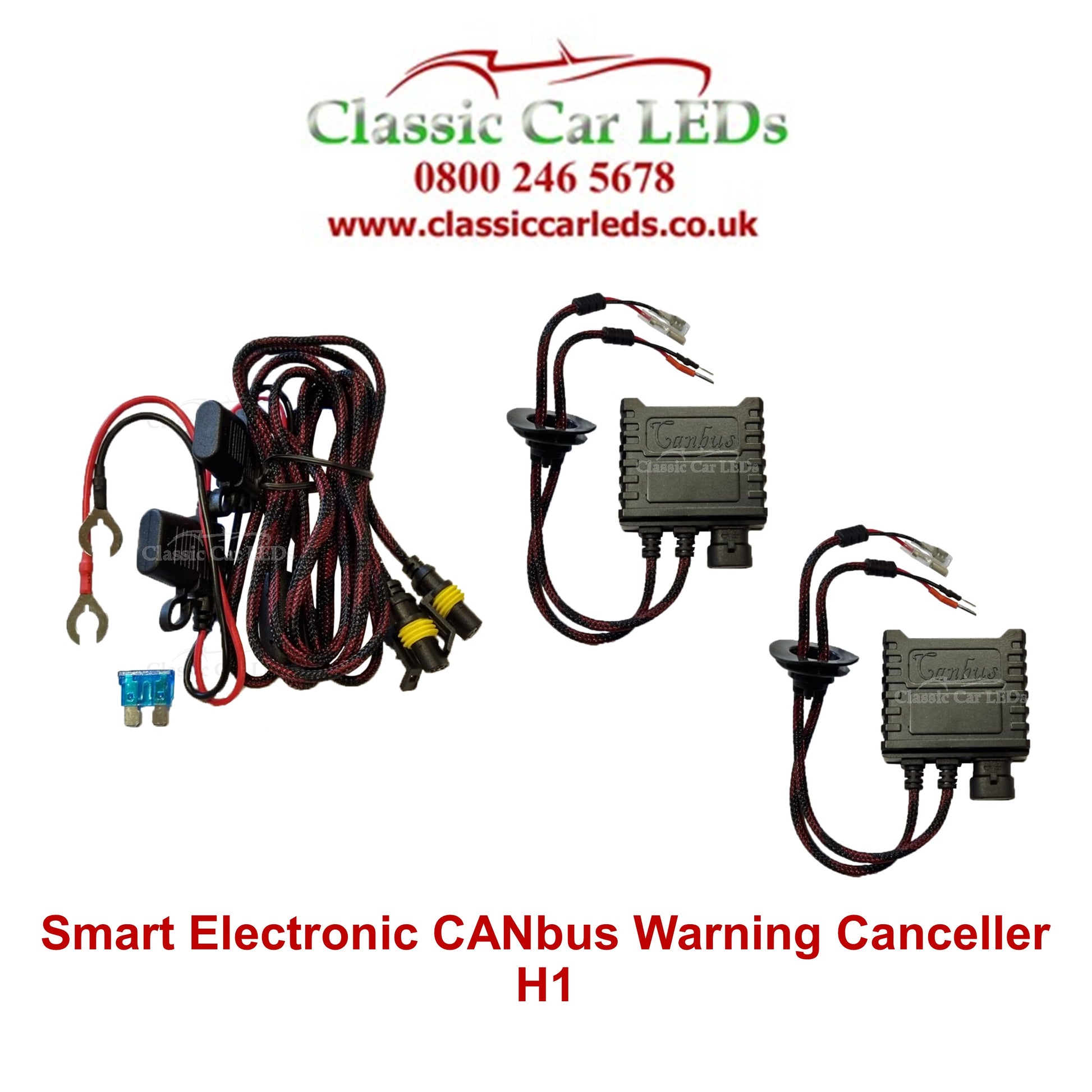

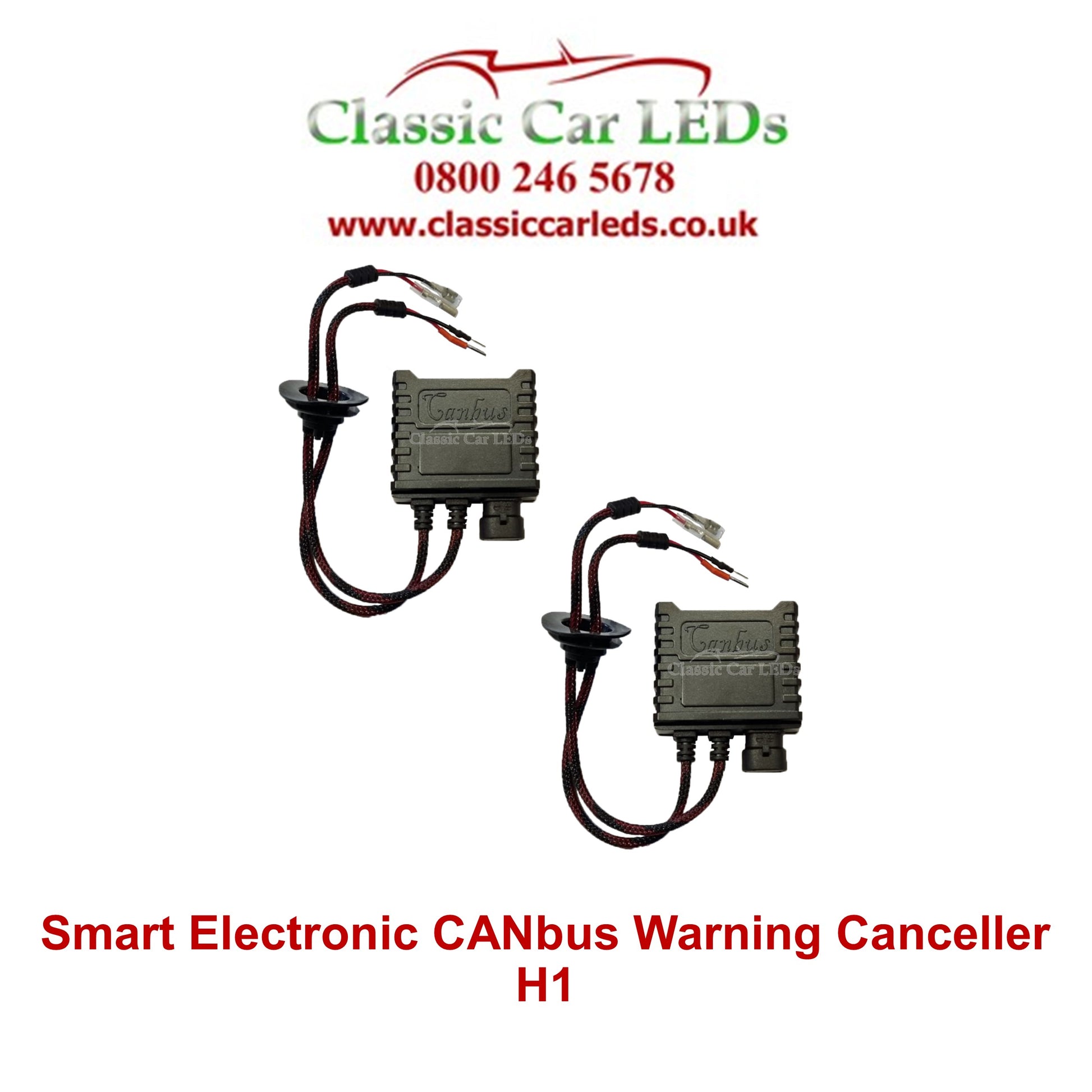

H1

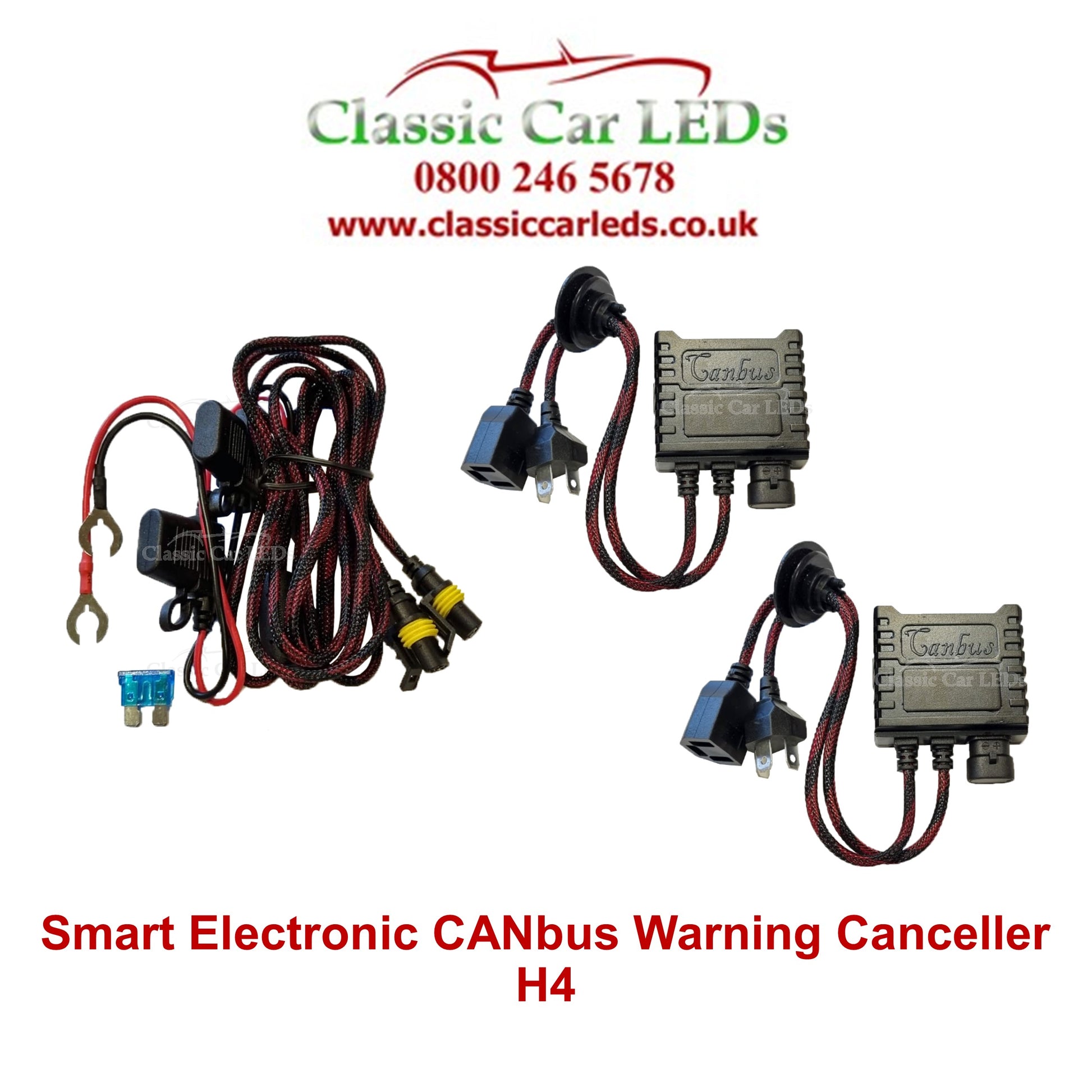

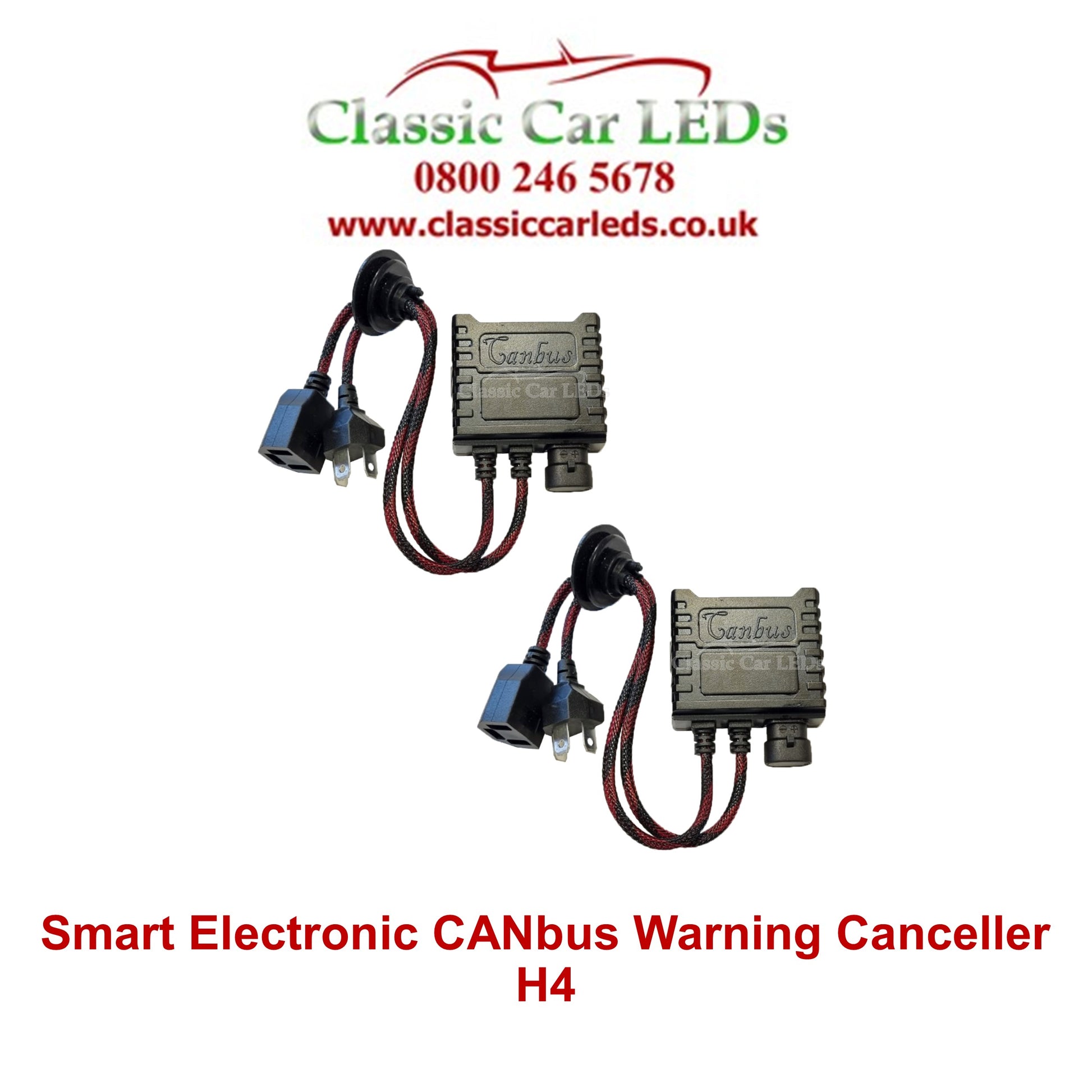

H4

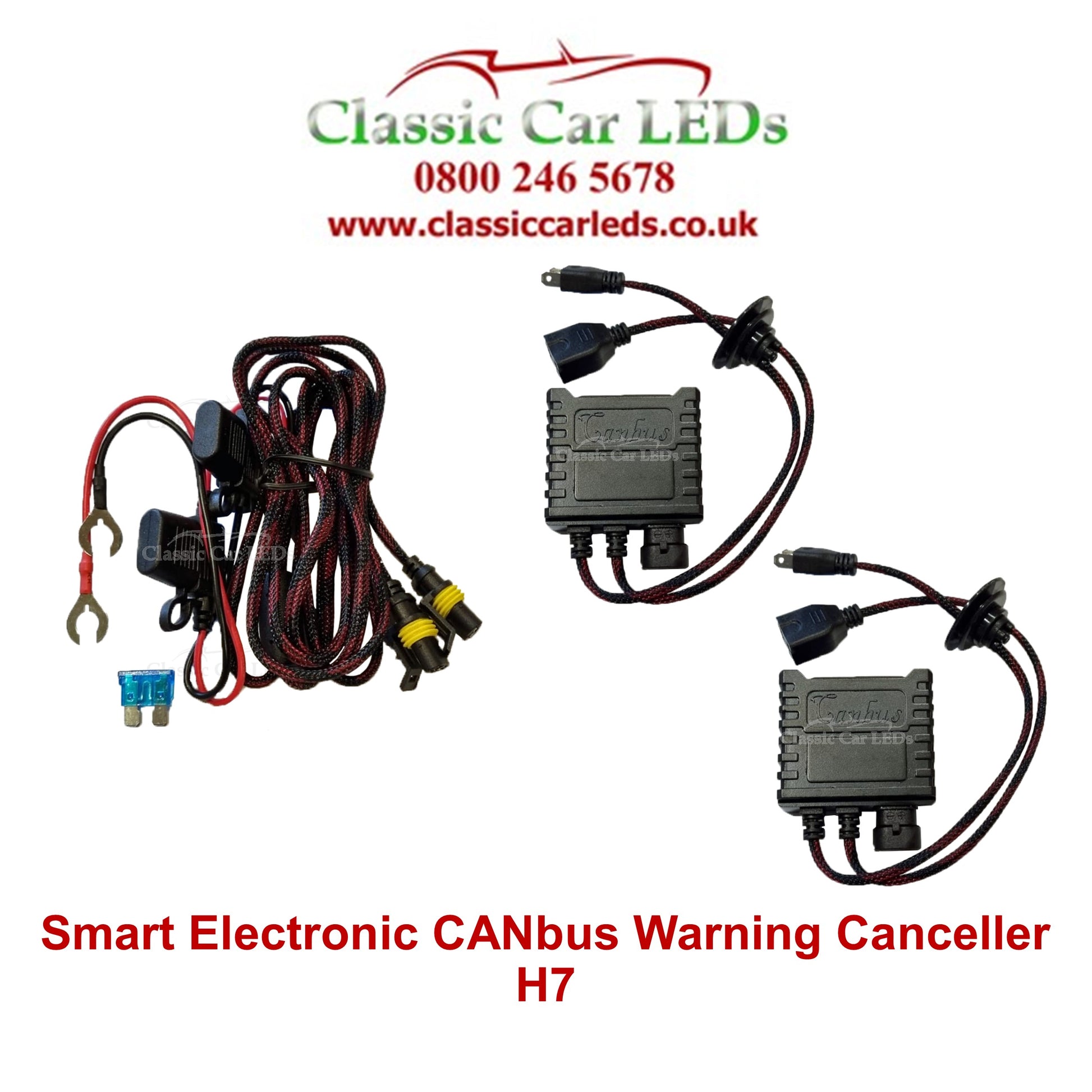

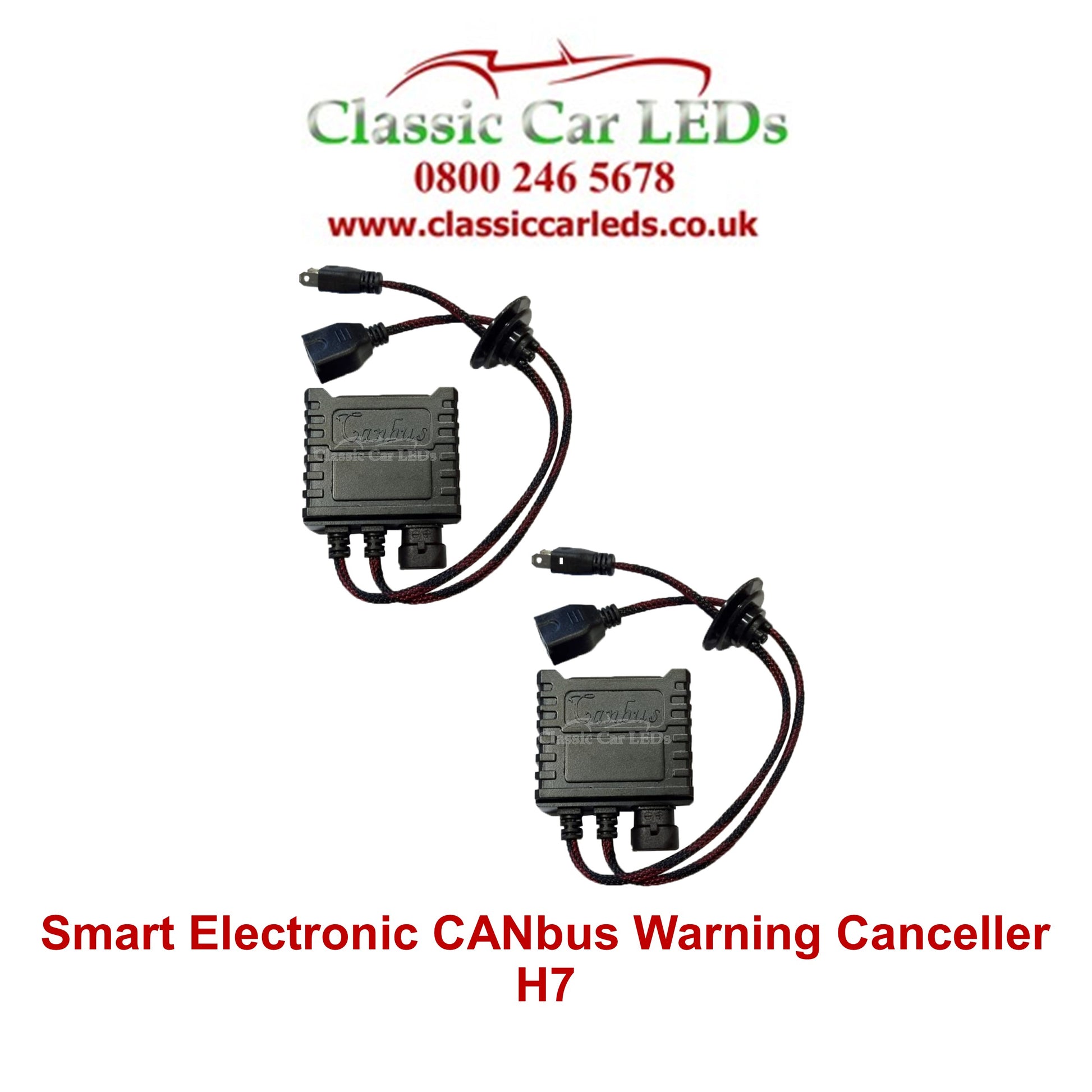

H7

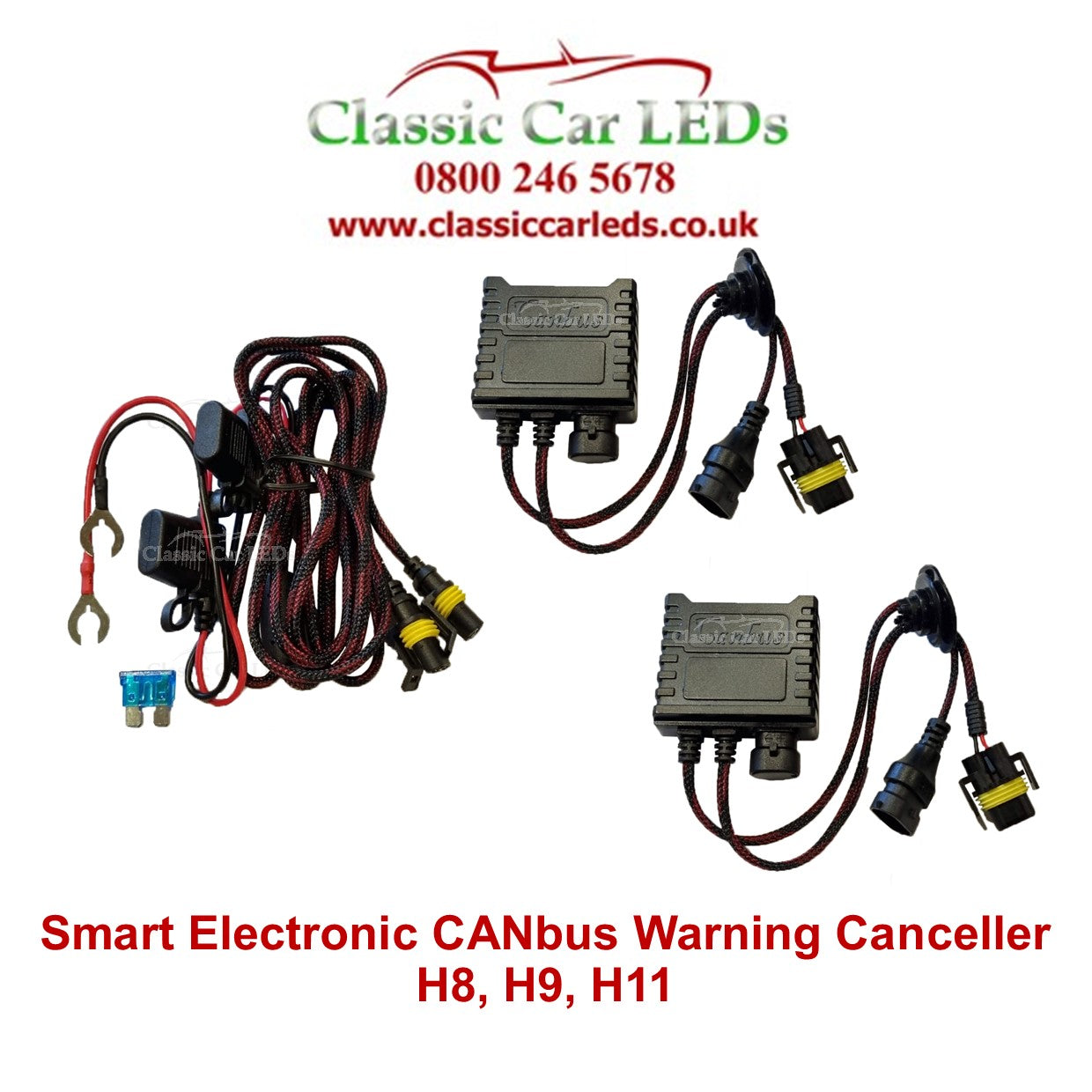

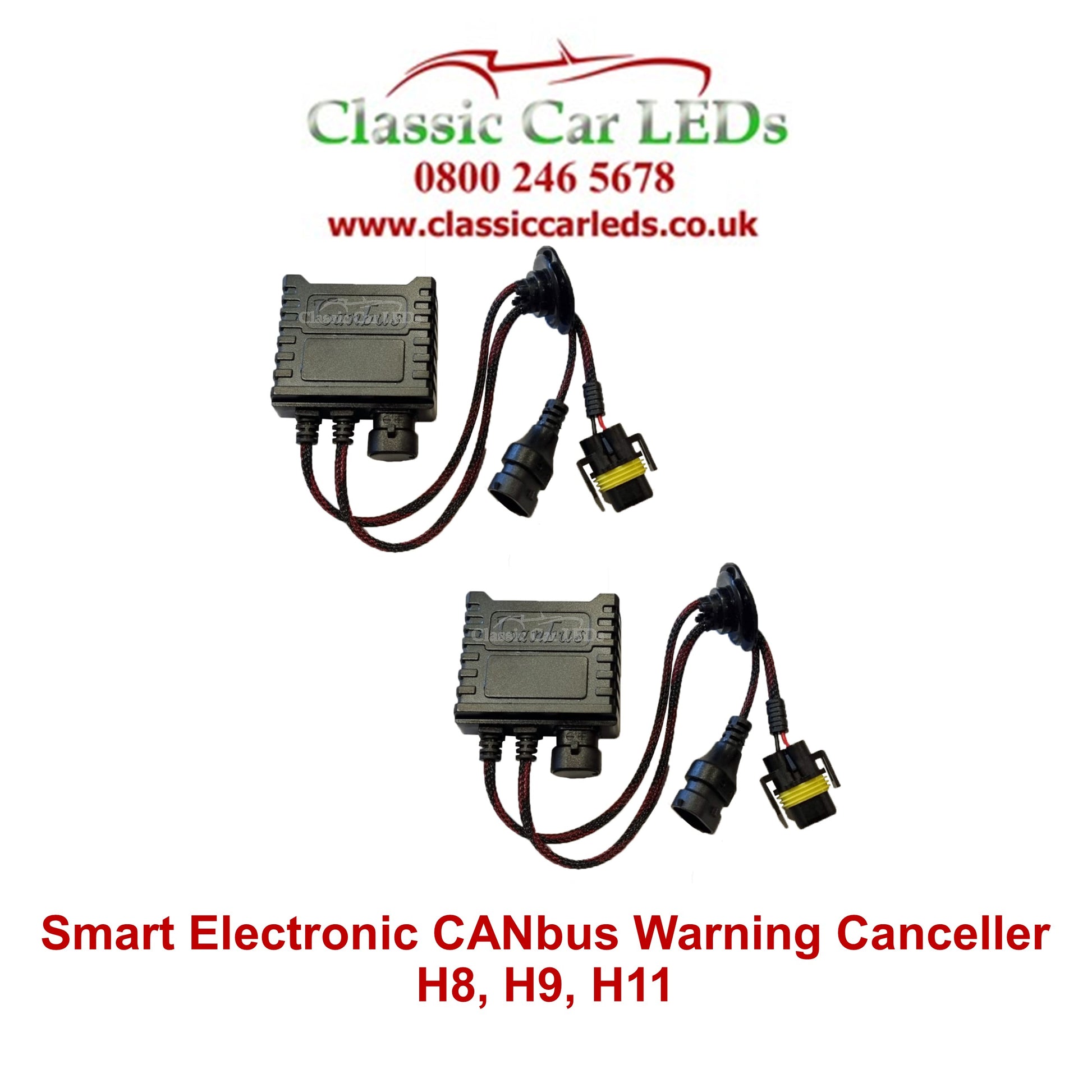

H8 / 9 / 11

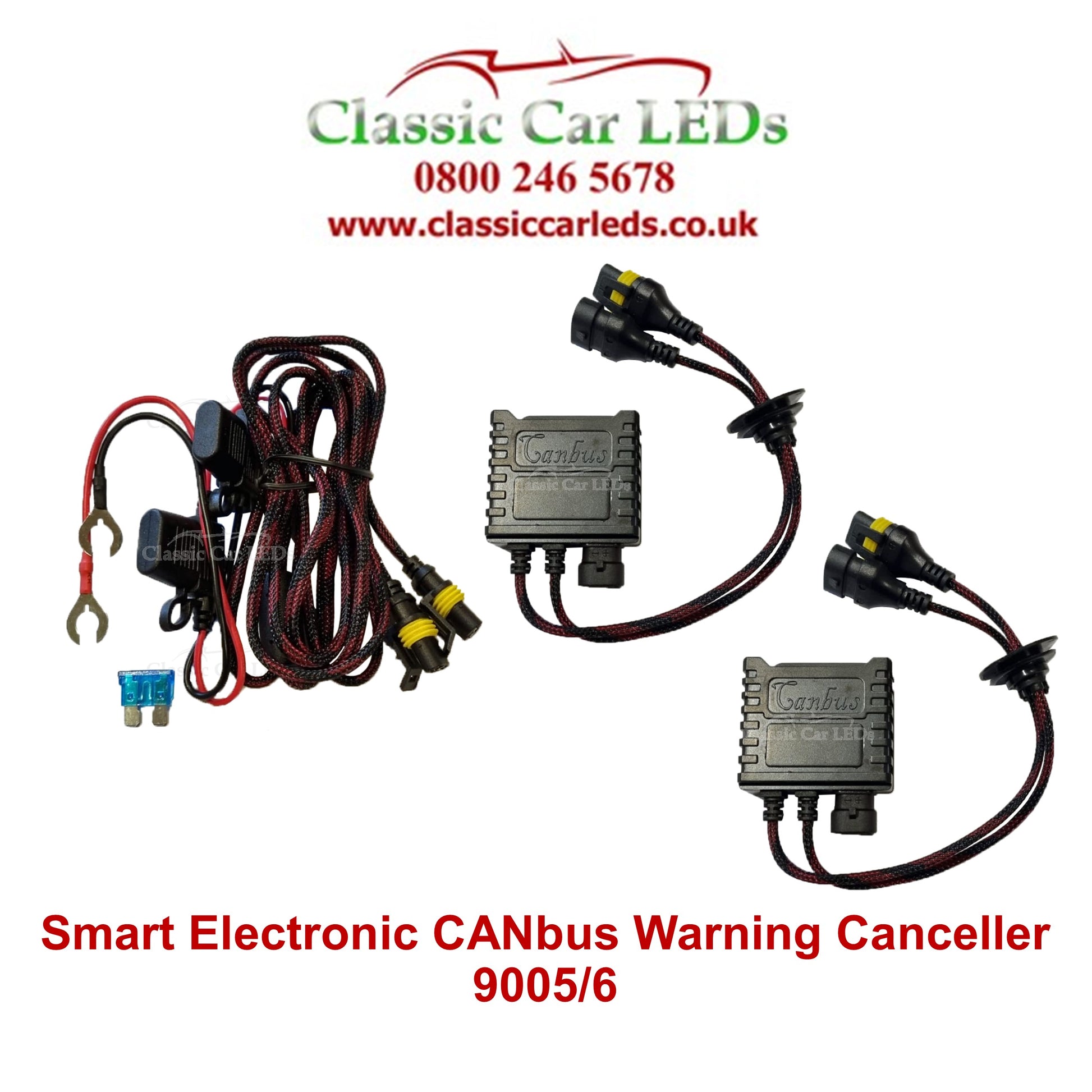

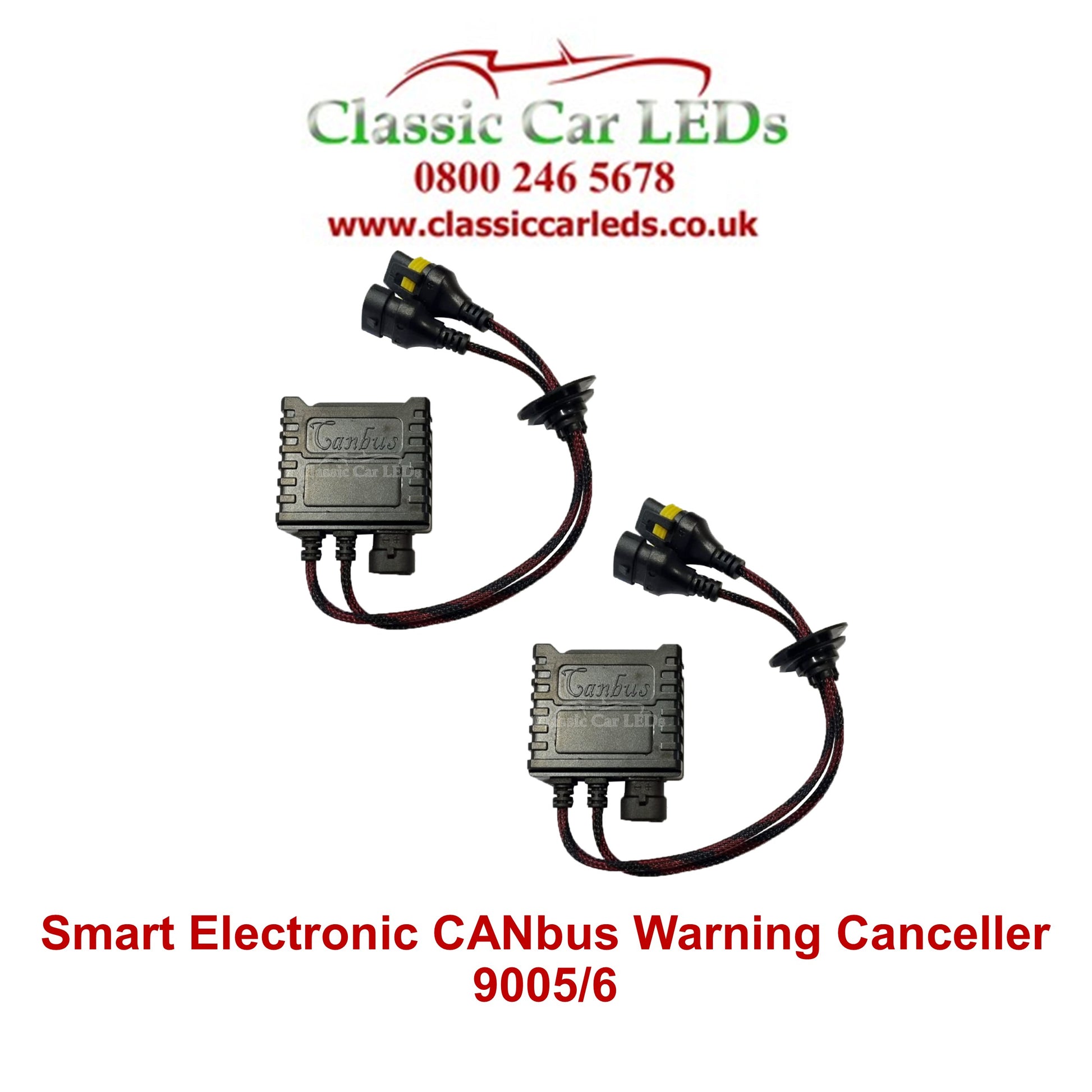

9005 / 9006 (HB3/4)

No programming is required. These decoders use smart technology to automatically match the type of CANbus issue your vehicle has and solve it.

Voltage Input 9-16 volts
Power Input 5-75 watts
Power Output 45-65 watts
Working Frequency 150 KHz

Unit dimensions - 67 x 62 x 24mm

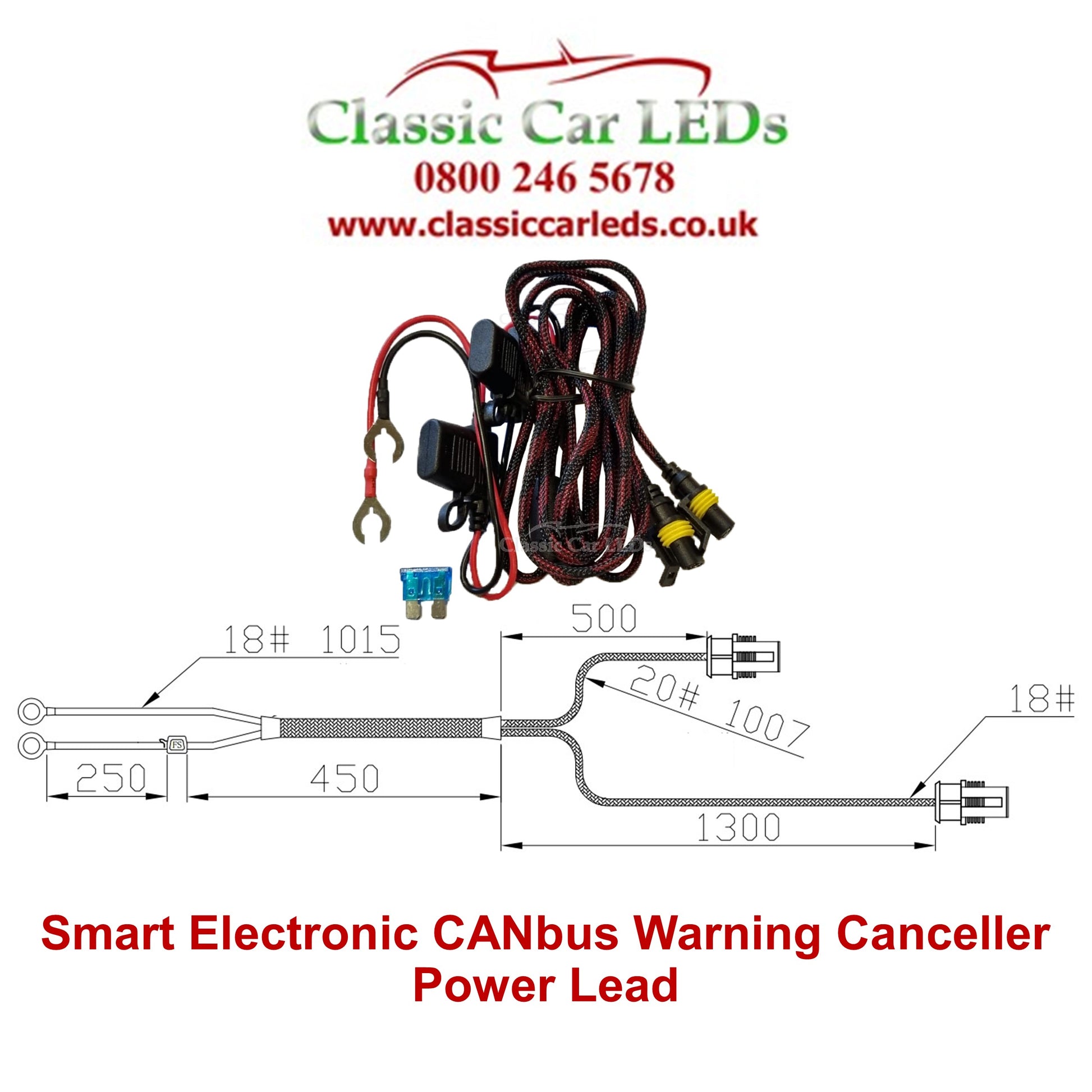

Power lead dimensions - see photo.

MODIFIED ITEMS WILL NOT BE ACCEPTED FOR RETURN.

All prices shown exclude UK and EU VAT which will be added at checkout together with postage where appropriate.

Part Numbers: 9005 6 DECODER, H1DECODER, H4DECODER, H7DECODER, H8DECODER
