Bundled kit especially for the VW Transporter T5.1 and T6 - A pair of our very popular and high quality Top Range H4 LEDs together with the required warning cancellers provided as a harness extension to cancel the dash bulb out warning and flicker that the T5.1 and T6 can suffer from when upgrading to LED headlights.

We've been providing this kit as separate items for a few years to T5.1 and T6 owners and all have commented how much of an improvement the lighting is.

This is a pair of top quality, H4 LED headlights made with the latest Z-ES chips which produce a clean white focused light with no glare and a very well defined beam that replicates the low and main beam pattern of a standard H4 halogen bulb. Each bulb has 16 x Z-ES chips on it making them one of the brightest in the market.

IP 65 Waterproof and vibration proof with IC Control, they are manufactured from aviation grade aluminium so are built to last.

Each bulb has 16 chips and has been specifically designed to mimic the dimensions of a standard H4 Halogen bulb.  As a result, you can be confident that they will produce an improved brighter and whiter light that will not dazzle other road users.  In addition the reach of the beam (how far you can see ahead) is excellent and will provide an all round much improved performance over halogen bulbs.

Adjustable for left hand and right hand drive vehicles to ensure the correct beam pattern with a very simple twist mechanism that locks the bulb into place, these can be universally fitted with ease and are a simple plug and play solution with no changes to your existing wiring, they plug into your existing H4 socket. The heat sink is also reversible so will mimic the length of a standard H4 Halogen bulb.

They switch on immediately to give you instant light at maximum brightness.  There is no cooling fan, so therefore no moving parts to fail.  Cooling is provided by the built in heat sink They WILL improve your night time driving experience.

These bulbs are not polarity sensitive so will work with negative and positive earth vehicles.

We use these headlight LEDs on our own cars so know the benefits these bulbs have and how easy they are to fit.

Colour:                  Pure White 6000-6500K (standard halogen is 3500-4000k)
Voltage:                 9-32V will suit 12 volt and 24 volt vehicles
Lumen:                  4600 main beam per pair (standard halogen is around 1200 Lumen)
                              4600 dipped beam per pair (standard halogen is around 700 Lumen)
Lifespan:               50,000 hours
Wattage:               160W per pair equivalent light output (not power drawn)
Current Drawn:     1.6 Amps (standard halogen uses 5 Amps) - power drawn dramatically reduced

If your headlamp fittings are tight, you may find it useful to purchase our purpose built 40cm extension leads which will allow you to remotely mount the IC units (part number H4CABLE).

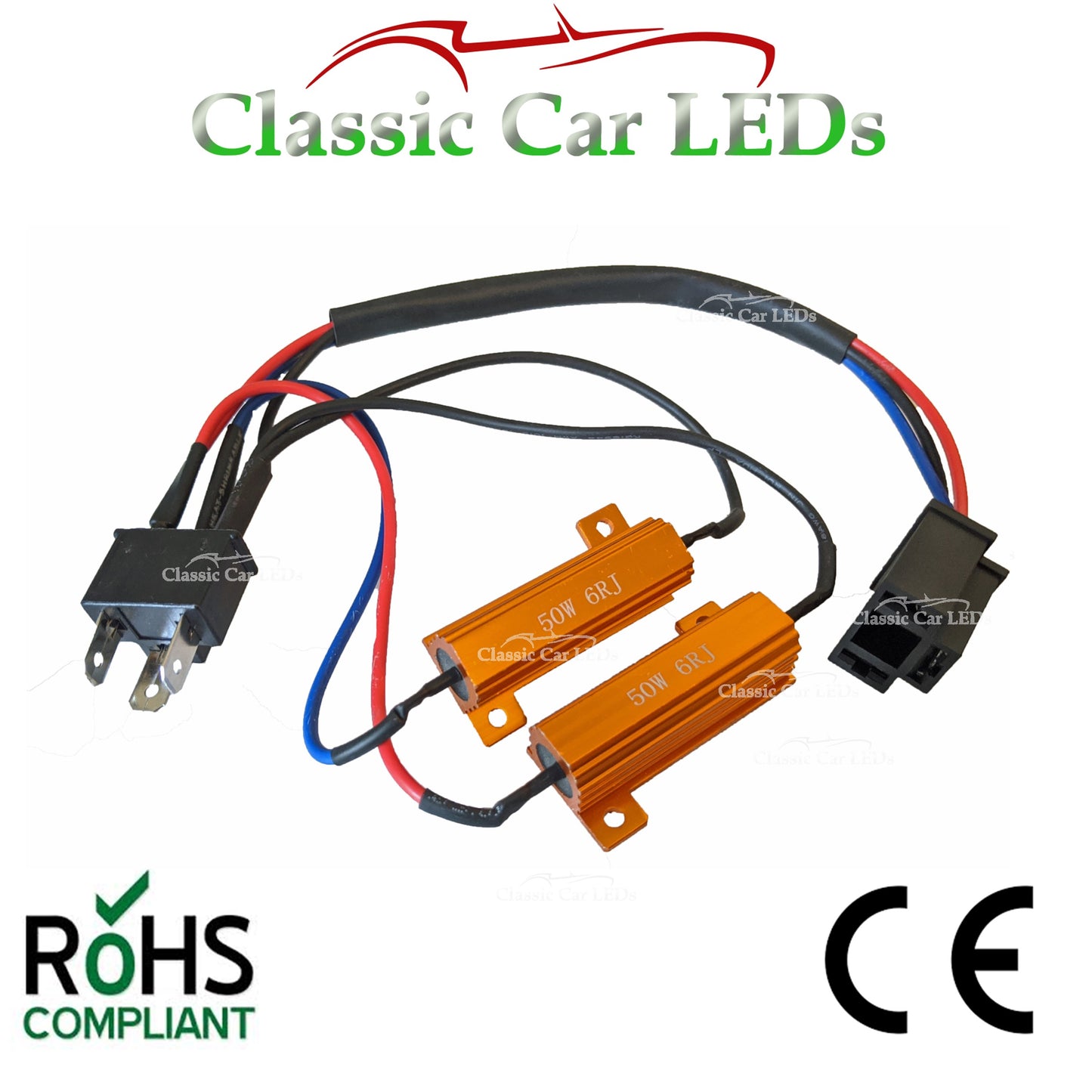

Ballast resistors are required for the majority of T5.1 and T6's after fitting LED headlights to solve flicker or bulb out warnings.

These are high quality 50 Watt 6 Ohm Ballast resistors built into a plug and play harness suitable for H4 LEDs to aid easy fitting.  These units convert excess voltage to heat which then dissipates through the metal casing.  Please note that these can therefore get very hot and should be mounted where they will not cause any risk due to the heat emissions.

These LEDs are CE and ROHS approved.
Our LEDs are all high quality and made to our own demanding specifications.
We believe in fair pricing and are confident you will not get a better price unless you want to compromise on the quality or life of your LEDs.


Due to the recent change in UK MOT regulations, these are not now acceptable for UK MOT's despite them having excellent beam patterns.

All prices shown exclude UK VAT which will be added at checkout together with postage where appropriate.

Part Number: 2XH4&BALLASTKIT
